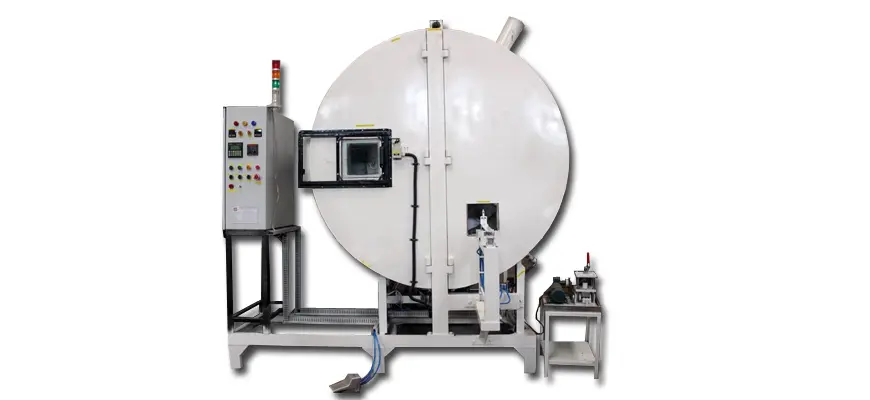

Index Type Trickle Impregnating Machines

index

We are Manufacturer, Supplier, Exporter of Trickle Impregnating Machines, Index Type Trickle Impregnating Machines, Trickle Impregnating Plants, Trickle Varnishing Machines and and majorly we serve our products to customers from all over India (including Satara, Maharashtra, India etc.), & Saudi Arabia, Jordan, Qatar, Iraq, Nepal, Bangladesh, Zambia, Equator, Egypt, Turkey etc.

Trickle Impregnating Machines are suitable for automatic impregnating of stators and rotors by trickle process. Stators and Rotors are heated to pre-determined temperature and then trickled with varnish (Resin + Hardener) and cured until it hardens. They are then ready for unloading manually. They are rotated by chain drive which rotates the spindles mounted on rotating / indexing table at an appropriate speed suitable for trickling. Indexing Table is rotated by motor with gear box and limit or proximity switches.

Get A Quote

Trickle Varnishing Machine Consists Of Following Major Components


  • Job Indexing Systems

    Index table is mounted on a spindle placed in fabricated box containing main spindle bearings. It is indexed with the help of brake motor, gearbox, chain, and main spindle. The index position is ensured by spring loaded index pin operated by pneumatic cylinder, proxy switch, reed switch & PLC.


  • Job Rotation Systems

    Rotating spindles are mounted on the index table driven by electric motor, gearbox, chain and sprockets. An arrangement is provided such that when jobs come to loading - unloading station, spindles stop rotating for easy removal and placement.


  • Varnish Feeding Systems

    Varnish is fed by peristaltic tube pumps driven by D.C. motors with variable speed control to control varnish quantity according to the models. Varnish quantity is varied & controlled by setting pump speed and trickle time.


  • Heating Systems

    Stators and Rotors are pre heated and cured while passing through the pre heating zone and post heating zone. Radiation type electric heaters do heating in pre-heating and curing zone with temperature control by Digital Temperature Indicating Controller with proportionate temperature control. Both the zones are insulated with glass wool to minimize heat loss. Both the zones are lined with reflective aluminum sheet backed by asbestos cloth for efficient heat reflection and distribution.


  • Varnish Feeding Systems

    Varnish is fed by peristaltic tube pumps driven by D.C. motors with variable speed control to control varnish quantity according to the models. Pneumatic tube positioning system is provided for proper varnish feeding. Total cycle is automatic except for loading and unloading.


  • Centralized Control Panels

    Is provided for complete preset automatic operation cycle except for loading and unloading. It is provided with cycle parameters settings such as pre-heating and curing temperature, varnish quantity, trickle time, total cycle time, etc. The PLC is provided to control the operation of the machine in proper sequence and safety.
